Data streams
- collect and ingest data in real time data from 100s and 1000s of sources.
- data can be retained for 365 days → consumers can replay it
- data can’t be deleted from kinesis until expiry
- best practice is to send lot of small data, but kinesis lets you inject upto 1MB of data
- data with same partition id is guaranteed to be in order
- at rest KMS encryption, at flight HTTPS encryption
Write optimised Kinesis Application, use KPL - Kinesis Producer Library KCL - Kinesis Consumer Library
Producers
- Kinesis Agent can be installed within the servers that serves as producers for metrics and logs
- Applications can be configured to send records via
PutRecordAPI

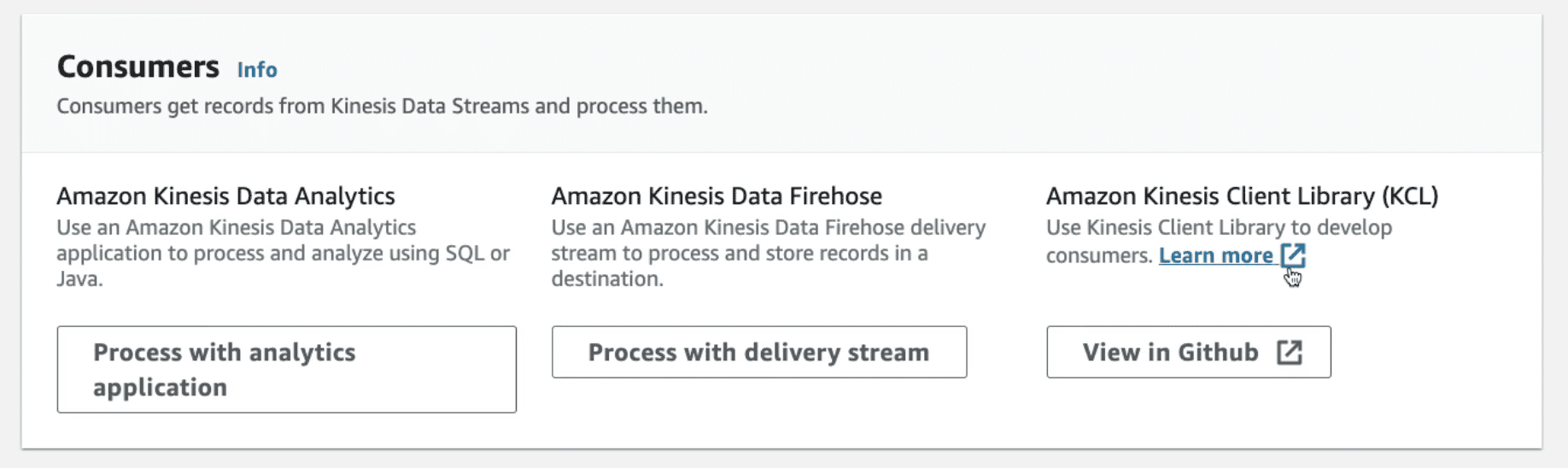

Consumers
- Managed Apache Flink
- Lambda or an Application
- data firehose
Provisioned Mode
Shard - A shard is unrelated to other shard definition, is the base unit of throughput; Shards constitutes to overall throughput composition for YOUR aws kinesis data stream
🫰 Pay per shard provisioned per hour
A Shard’s throughput
- write capacity - Support up to 1MB/s and 1000records/second (ie 1000 one KB records or one 1MB record at a time)
- read capacity - scale up to 2MB/s
That is, if you are planning for 4MBs write throughput, you provision 4 shards

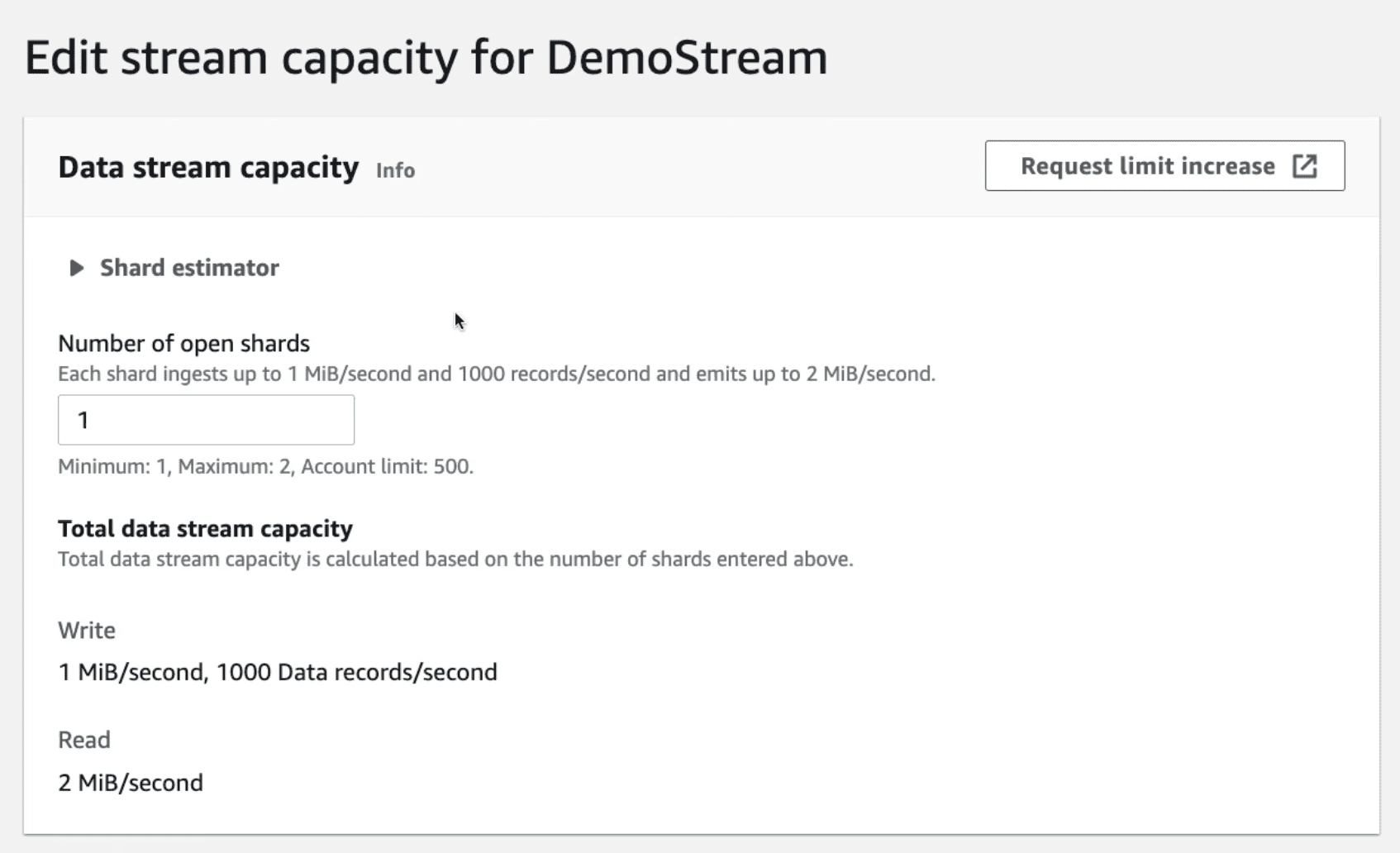

Configuration
Once the data stream is provisioned, it can be updated in the configuration pane (shards can be only doubled, ie from 1 to 2, not 3)
On Demand
- Defaults at 4MB/s, scales automatically based on the observed throughput for the past 30days
🫰 Pay stream per hour & data in/out in GB
